Everything You Need to Know About Transmission Radiators: Importance, Function, and Maintenance

When it comes to your vehicle’s engine and transmission system, keeping everything cool and operating smoothly is essential. One key component that helps ensure the longevity and proper function of your vehicle’s transmission system is the transmission radiator. While most people are familiar with the engine radiator, the transmission radiator plays a critical yet often overlooked role in maintaining optimal temperature levels for your transmission fluid. In this blog post, we’ll dive into what a transmission radiator is, its function, and how to maintain it for peak performance.

What is a Transmission Radiator?

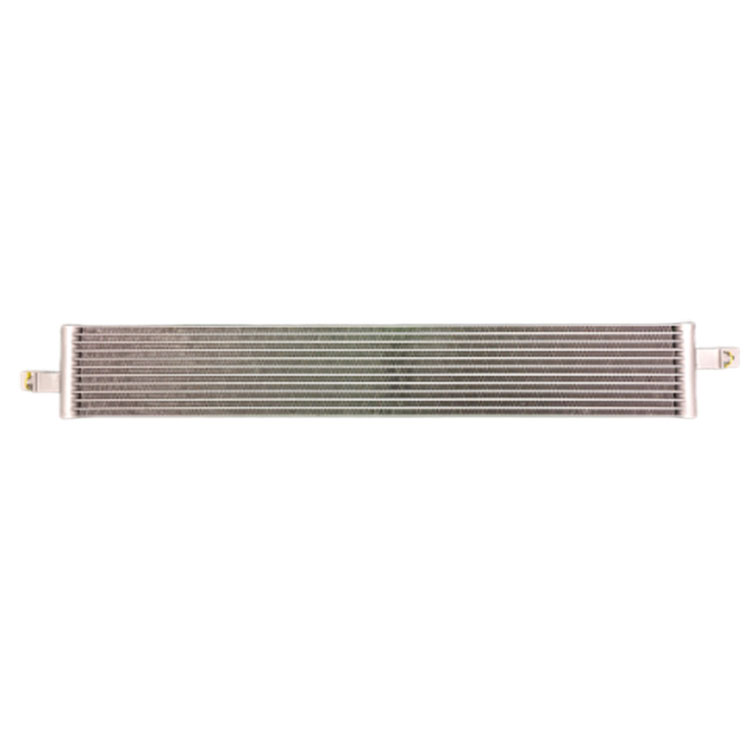

A transmission radiator is a cooling device designed to regulate the temperature of your vehicle’s transmission fluid. It works in conjunction with the vehicle's primary radiator, but instead of cooling engine coolant, it cools the transmission fluid to prevent overheating. Overheating is a common issue in vehicles with automatic transmissions, and the transmission radiator serves as a safeguard against this problem by keeping the transmission fluid at an optimal temperature.

Transmission radiators are typically located inside the main radiator of your vehicle, especially in modern vehicles. They are often referred to as auxiliary radiators or transmission coolers because they assist in the cooling process without needing a separate cooling system.

How Does a Transmission Radiator Work?

A transmission radiator is similar in principle to an engine radiator but designed to cool transmission fluid rather than engine coolant. Here's how it works:

1. Transmission Fluid Flow:

  Transmission fluid flows from the transmission through the transmission cooler, which is integrated within or alongside the main engine radiator. As the fluid flows through the cooler, it passes through a series of tubes or fins.

2. Heat Exchange:

  The heat from the transmission fluid is transferred to the metal fins or tubes, which in turn dissipate the heat into the air. The cooler fluid is then returned to the transmission to keep the system operating at the right temperature.

3. Prevention of Overheating:

  By removing excess heat from the transmission fluid, the transmission radiator prevents overheating. When transmission fluid gets too hot, it can cause damage to the seals, gaskets, and other critical parts of the transmission, leading to poor shifting performance, slipping, or even total transmission failure.

Why is a Transmission Radiator Important?

1. Prevents Transmission Overheating:

  The primary role of a transmission radiator is to keep the transmission fluid cool. Transmission fluid that becomes too hot can lose its lubricating properties, increasing friction and leading to wear and tear on the internal components. Overheated transmission fluid can also cause the transmission to slip, resulting in a loss of power and performance. A well-functioning transmission radiator helps maintain the proper temperature, ensuring smooth and efficient operation.

2. Extends Transmission Life:

  Overheating is one of the leading causes of premature transmission failure. By cooling the fluid and maintaining proper temperature, the transmission radiator helps extend the lifespan of your transmission. A cooler transmission means less strain on the internal components, allowing your transmission to operate optimally for longer periods.

3. Improves Shifting Performance:

  When transmission fluid is at the right temperature, the transmission operates smoothly, ensuring quick and accurate shifting. An overheating transmission fluid can cause sluggish shifting or even result in the vehicle being stuck in a particular gear. Keeping the fluid at the optimal temperature ensures seamless gear transitions, enhancing the overall driving experience.

4. Helps with Towing and Heavy Loads:

  Vehicles used for towing or carrying heavy loads are at a higher risk of transmission overheating. The increased strain on the transmission system requires more cooling to prevent the fluid from getting too hot. A transmission radiator plays a crucial role in providing additional cooling, especially when the vehicle is under heavy load.

Signs That Your Transmission Radiator Might Be Failing

Like any other component in your vehicle, the transmission radiator can wear out or become damaged over time. Here are some common signs that your transmission radiator may need attention:

1. Transmission Overheating Warning Light:

  If your vehicle’s dashboard shows a transmission overheating warning light, it’s a clear indication that the fluid temperature is too high. This could be a sign of a failing transmission radiator that isn’t doing its job in cooling the fluid properly.

2. Slipping or Rough Shifting:

  Overheating transmission fluid can lead to rough or erratic shifting. If your vehicle hesitates to shift or experiences hard shifts, it could be due to a malfunctioning transmission radiator that is not effectively cooling the fluid.

3. Burnt Smell from the Transmission Fluid:

  A burnt smell coming from the transmission fluid is a sign that the fluid has been overheated and is no longer functioning effectively. The transmission radiator may not be cooling the fluid properly, causing it to degrade and emit a burnt odor.

4. Transmission Fluid Leaks:

  A leak in the transmission radiator can cause the fluid level to drop, leading to insufficient cooling and potential transmission damage. If you notice red or brown fluid spots under your vehicle, it could be a sign of a leak in the radiator.

5. Transmission Fluid Temperature Gauge Reads High:

  Some vehicles come equipped with a transmission fluid temperature gauge. If the temperature consistently reads high, it could indicate that the transmission radiator is not functioning correctly.

Maintaining Your Transmission Radiator

To ensure your transmission radiator continues to operate efficiently, regular maintenance is key. Here are some tips to keep your transmission cooler in top condition:

1. Check Transmission Fluid Regularly:

  One of the simplest ways to maintain your transmission radiator is by checking the transmission fluid regularly. Low or dirty fluid can affect the performance of the cooler and lead to overheating. Always follow the manufacturer’s recommendations for fluid changes.

2. Inspect for Leaks:

  Regularly inspect the area around your transmission radiator for any signs of leaks. If you notice any fluid leaks, address the issue promptly to prevent low fluid levels that could lead to overheating.

3. Clean the Radiator Fins:

  Over time, debris, dirt, and grime can accumulate on the radiator fins, restricting airflow and reducing cooling efficiency. Cleaning the radiator and fins regularly can help maintain proper airflow and prevent overheating.

4. Flush the Transmission:

  Flushing the transmission and replacing the fluid at regular intervals will ensure that the system remains in good condition. This will help prevent the buildup of debris or contaminants that could hinder the radiator’s cooling function.

Conclusion

The transmission radiator may not be as well-known as the engine radiator, but it is an essential component for ensuring your vehicle’s transmission operates smoothly. By keeping the transmission fluid cool, a functioning transmission radiator helps to prevent overheating, extend the life of your transmission, and improve overall performance. Regular maintenance and timely repairs are crucial to avoid the serious damage that can result from a malfunctioning transmission cooler. By staying proactive with care and attention to your transmission radiator, you can ensure your vehicle runs efficiently and remains reliable for years to come.
